Type: Conveying Equipment
Input Size: 0.8-2.5 m/s
Processed Materials:
River Gravel, Granite, Basalt, Quartz, Iron ore, Limestone, coal etc. .
Applications:
Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.

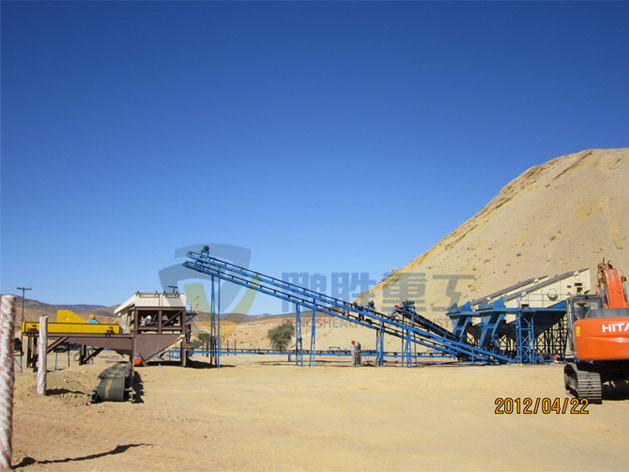

Belt conveyor is used to convey materials continuously. It is widely used in mining, metallurgical and coal industry to transfer sandy or lump materials, or packaged goods.

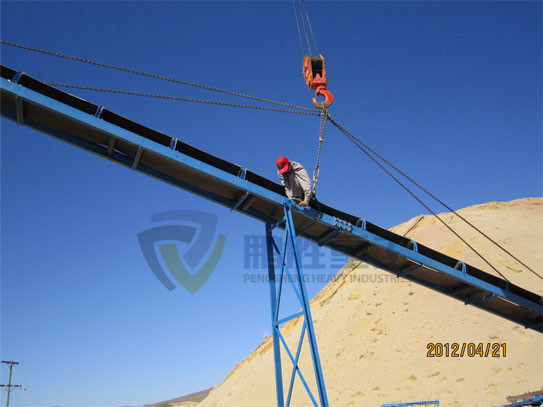

As require, belt conveyor can be used independently or multi-conveyors together or combined with other transfer equipments. Belt conveyor can be installed horizontally or slope as require. Belt conveyors can work in the temperature range from -20℃ to +40℃, the temperature of transferred materials should be lower than 50℃.
Belt conveyor is of large conveying capacity, simple structure, standard components, it is easy to maintain.
Type | Belt Width (mm) | Transmission Length(m) Motor Power(kw) | Conveying Speed (m/s) | Conveying Capacity. (t/h) | ||||
B400 | 400 | <22 4 | 0.8-1.6 | 25-50 | ||||
B500 | 500 | ≤18 4 | 19-24 5.5 | 25-33 7.5 | 0.8-1.6 | 50-100 | ||
B650 | 650 | ≤12 4 | 13-18 5.5 | 19-25 7.5 | 26-35 11 | 0.8-1.6 | 80-160 | |
B800 | 800 | ≤10 4 | 11-15 5.5 | 16-20 7.5 | 21-30 11 | 1.0-2.0 | 140-280 | |
B1000 | 1000 | ≤10 5.5 | 11-16 7.5 | 17-25 11 | 26-33 15 | 1.0-2.0 | 225-450 | |
B1200 | 1200 | ≤10 5.5 | 11-14 7.5 | 15-20 11 | 21-25 15 | 26-33 18.5 | 1.0-2.5 | 320-800 |
B1400 | 1400 | ≤10 7.5 | 11-17 11 | 18-22 15 | 21-25 18.5 | 26-35 22 | 1.0-2.5 | 40-1000 |
Note:
1. The process capacity is affected by many factors: physical characters of the feeding materials, shape or size of materials and feeding method, etc.
2. Any change of technical data shall not be advised additionally.
