Type: Secondary Mobile Crusher
Input Size: 0-241mm
Processed Materials:
Basalt, Granite, River Stone, Iron ore, copper ore, gold ore, manganese ore, limestone, , quartz, silica, gypsum, volcanic rock, marble, coal etc.
Applications:
Secondary coarse & fine crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
Mobile crushing plant is mainly applied in metallurgy, chemical, building materials, hydropower industries where jobsites need moving from one place to another, especially in dealing with stones for highway, railway, and hydropower project. Users can choose different configurations according to the type and scale of raw materials, as well as the requirements for final product.

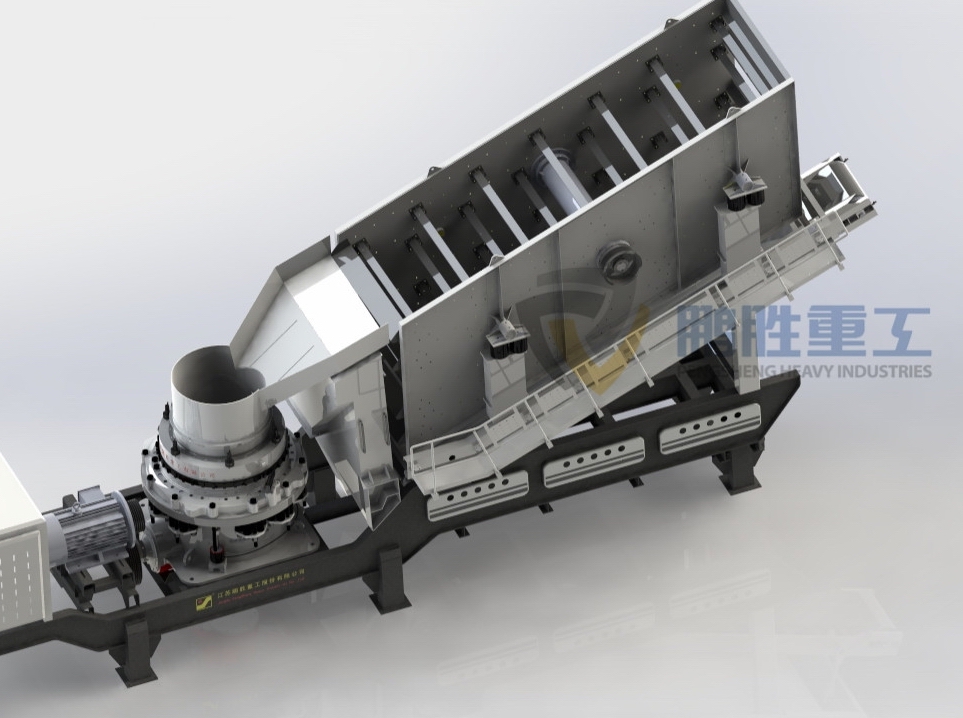

Wheel-tyred mobile crushing plant is an advanced and flexible crushing combination that is developed by our R&D team. It expands the new area and concept of coarse and fine crushing. Design purpose of it is to stand in customer’s position, and help remove obstacles from production sites, environment, and complicated configurations.
1. Easy transportation, lower cost and wide suitability;
2. Short assembly time, flexible combination, and convenient installation;
3. Light and compact structure design, excellent crushing performance;
4. Space-saving and safe maintenance.
Model Number | Main Machine | Items | Unit | Parameter |
YL4YK1860-S160 | Complete Machinery | Dimension(L×W×H) | mm | 14800×3850×6900 |
Height of Feeding | mm | 700 | ||
S160 Cone Crusher | Max Feeding Size | mm | 115 | |
Capacity | T/h | 105-180 | ||
Power | Kw | Y355M1-6-160 | ||
Weight | T | 22.15 | ||
4YK1860 Vibrating Screen | Max Feeding Size | mm | 250 | |
Capacity | T/h | 40-180 | ||
Power | Kw | 22 | ||
Weight | T | 8.5 | ||
B800×7 Conveyor Belt | Discharge Height | mm | 3880 | |
Power | Kw | 5.5 | ||
Running Parameter | Dimension for Shipping(L×W×H) | mm | 15300×2900×4850 | |
Max Speed | Km/h | 40 | ||
Maximum Gradeability | ° | 21 | ||
Minimum Ground Clearance | mm | 200 | ||
Press of Pneumatic | KPa | 650-750 | ||
Tyre Specs | mm | 10.00R20 | ||
King Pin Specs | mm | 90 |
