Products
Type: Screening Equipment
Input Size: 0-350mm
Processed Materials:
River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangue etc. .
Applications:
Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.

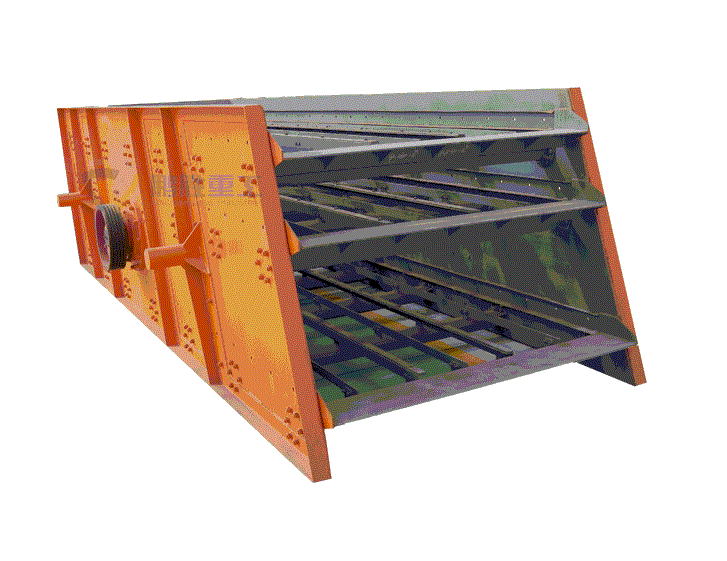

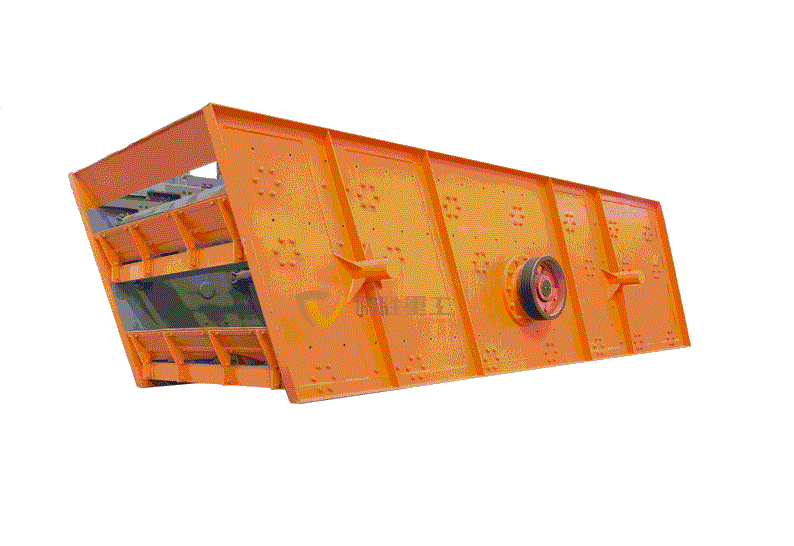

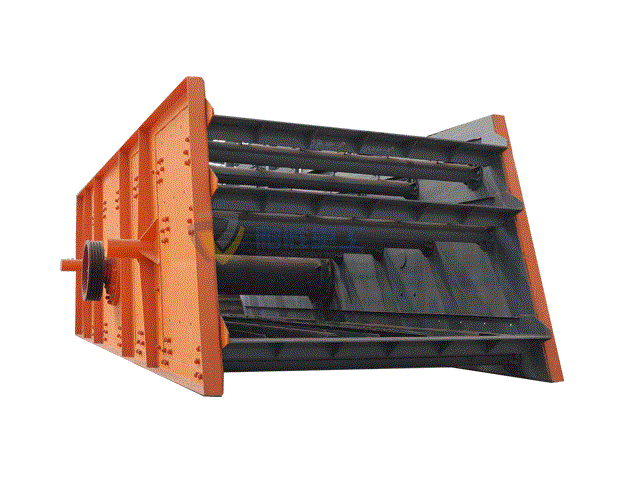

The YA circular vibrating screen adopts advanced technology from overseas, it can be applied to classify various materials in industry departments of coal, metallurgy, traffic, ore dressing, construction, power, chemicals etc. This YA vibrating screen, belongs to customized circle center style of vibrating screen, uses eccentric shafts type vibrator, ample clearance bearing, oil lubrication.
The YA circular vibrating screen has the characteristics of low noises, longer life, strong universal and convenient maintenance.
Model | Screen Size (mm) | Layers | Max Feeding Size (mm) | Capacity (t/h) | Power (kw) |
2YA1545 | 1500×4500 | 2 | 200 | 22-180 | 15 |
3YA1545 | 1500×4500 | 3 | 200 | 22-180 | 15 |
2YA1860 | 1800×6000 | 2 | 250 | 40-300 | 15 |
3YA1860 | 1800×6000 | 3 | 250 | 40-300 | 22 |
2YA2160 | 2100×6000 | 2 | 300 | 70-400 | 30 |
3YA2160 | 2100×6000 | 3 | 300 | 70-400 | 37 |
4YA2160 | 2100×6000 | 4 | 300 | 70-400 | 37 |
2YA2460 | 2400×6000 | 2 | 350 | 120-500 | 30 |
3YA2460 | 2400×6000 | 3 | 350 | 120-500 | 37 |
