Deep chamber jaw crusher is our patent product, it decreases the nip angle of the two jaw plates, increases the length of the crushing chamber which leads a higher contact area and a increased crushing capacity than the normal jaw crusher. Deep chamber jaw crusher is usually used as primary crusher in quarry production lines, mineral ore crushing plants and powder making plants.

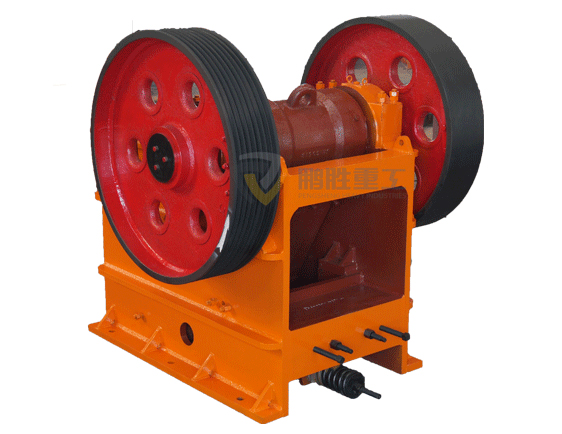

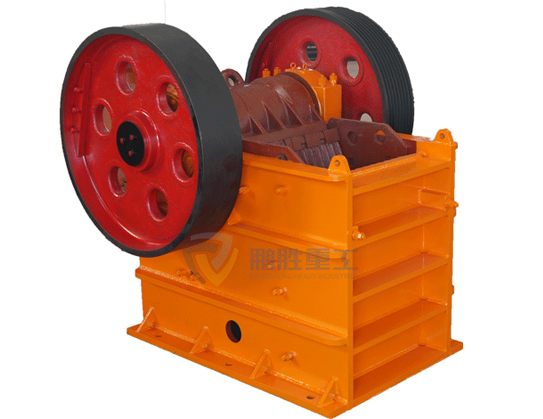

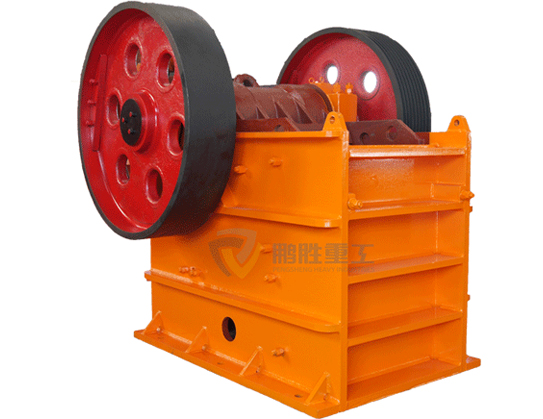

Jaw Crusher is widely used for stones/ores crushing in mining, metallurgy, building materials, expressway/railway construction, chemistry industries... It is suitable for in coarse and intermediate crushing materials with the highest anti-pressure strength no more than 320Mpa.
Our national patent “deep chamber jaw crusher” decreases the nip angle of the two jaw plates. Increase the length of the crushing chamber, which leads higher contact area and crushing capacity,
* Higher efficient, higher crushing ratio
* Product size adjustable during operation
* Easy access to wear areas for inspection and maintenance
Type | Feed Opening (mm) | Max Feed Size (mm) | Discharge Opening (mm) | Process Capacity (t/h) | Rotor Speed (r/min | Power (kw) | Weight (W/O Motor) (T) | Dimensions （L×W×H） (mm) |
PE250×400 | 250×400 | 210 | 20-60 | 5-22 | 300 | 15 | 3 | 1430×1310×1340 |
PE250×750 | 250×750 | 210 | 25-60 | 25-60 | 330 | 22 | 5 | 1545×1667×1330 |
PE400×600 | 400×600 | 340 | 35-85 | 16-65 | 275 | 37 | 6.5 | 1565×1732×1586 |
PE500×750 | 500×750 | 425 | 50-100 | 35-105 | 275 | 55 | 9.3 | 1890×1916×1870 |
PES600×900 | 600×900 | 500 | 75-125 | 60-160 | 250 | 75 | 15.5 | 2348×2118×2369 |
PES750×1060 | 750×1060 | 630 | 80-140 | 130-260 | 250 | 110 | 25.5 | 2585×2325×3090 |
PES800×1060 | 800×1060 | 680 | 120-180 | 145-290 | 250 | 110 | 26.7 | 2694×2325×3090 |
PES870×1060 | 870×1060 | 720 | 125-190 | 155-320 | 250 | 110 | 28.2 | 2810×2325×3090 |
PE900×1200 | 900×1200 | 750 | 135-200 | 180-350 | 200 | 132-160 | 40.5 | 3543×2689×3000 |
PE1000×1200 | 1000×1200 | 830 | 145-215 | 200-360 | 200 | 132-160 | 42 | 3667×2689×3000 |
PE1200×1500 | 1200×1500 | 950 | 160-280 | 400-800 | 180 | 200-220 | 86 | 4200×3732×4650 |
PEX250×1000 | 250×1000 | 210 | 20-60 | 16-50 | 330 | 30 | 6.2 | 1530×1992×1380 |
PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 330 | 37 | 7.3 | 1530×2192×1430 |
PEX300×1300 | 300×1300 | 250 | 20-90 | 30-105 | 300 | 75 | 10.6 | 1750×2320×1724 |
Note: 1. The process capacity is affected by many factors: physical characters of the feeding materials, shape or size of materials and feeding method, etc.
2. The above parameters are on the basis of the rock with the compressive strength about 80-100MPa.
3. Any change of technical data shall not be advised additionally.
