Type: tertiary crusher
Input Size: 0-80mm
Processed Materials:
Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, coal gangue, quartz.
Applications:
Mechanism sand, bituminous concrete, metal mine, aggregates shaping

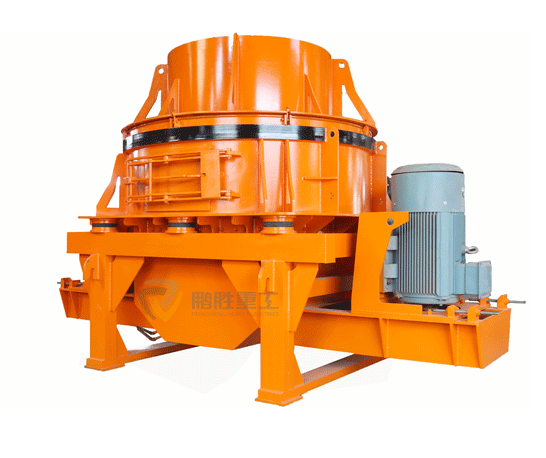

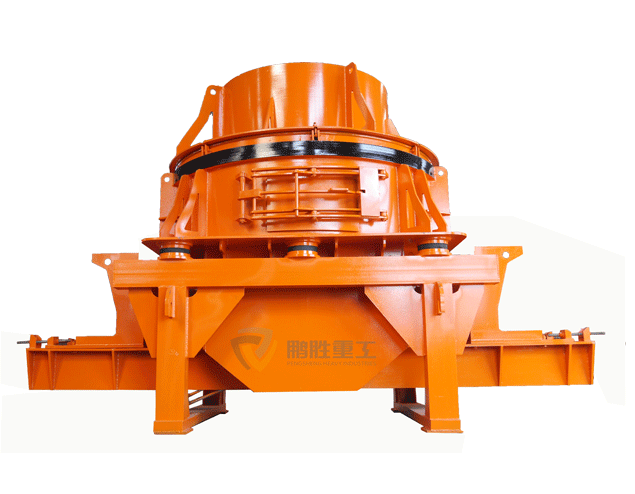

Vertical shaft impact crusher (Sand Making Machine) is the ideal product for Sand Making plant and stone crushing plant to make artificial sand. VSI crusher realizes multifunction (crushing, shaping and sand making) in one crusher.
Vertical shaft impact crusher is applied widely for processing mineral product including metal and non-metal ore, fireproof material, bauxite, glass raw materials, building materials, artificial sand and all kinds of metal ore materials in mining, construction, Metallurgy, cement industries. Especially have more advantages than any other machinery in processing hard materials.
With stone hit stone theory, low abrasion, low powder, cubic final products, high process capacity, low energy consumption, convenient installation, operation and maintenance.
Type | Max Feed Size (mm) | Speed (r/min) | Process Capacity (t/h) | Power (kw) | Weight (W/O Motor) (T) | Dimensions (L×W×H) (mm) |
VSI5000 | 40-50 | 1300-1500 | 80-150 | 180-220 | 11.2 | 4300×2215×2427 |
VSI6000 | 50-60 | 1200-1400 | 120-250 | 220-264 | 14.6 | 5300×2728×2273 |
VSI7000 | 50-60 | 1000-1150 | 150-300 | 264-320 | 16.6 | 4950×2360×3105 |
VSI9000 | 70-80 | 900-1000 | 380-500 | 440-500 | 24.2 | 6000×3022×3425 |
SBM quarry equipments includes primary crushing machines such as PE series jaw crusher, secondary crushing machines such as impact crusher, fine crushing equipments such as cone crushers and sand making machines such as vsi crusher. Our machines contain not only these stationary crushers . But also portable crushing station. For example crawler type mobile crusher and portable crushing plant.
