Type: Secondary Crushing
Input Size: 60-334MM
Processed Materials:
Hard stones like Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz etc.
Applications:
Cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries.

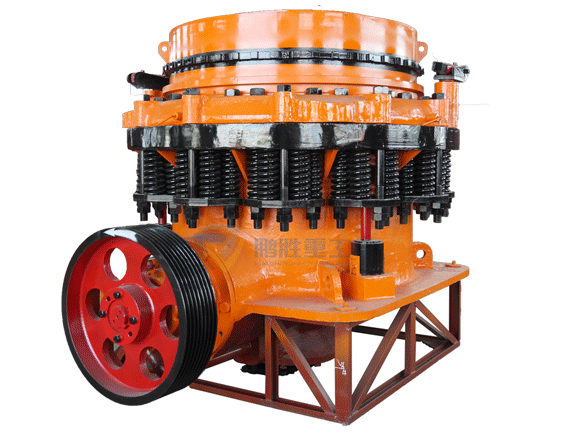

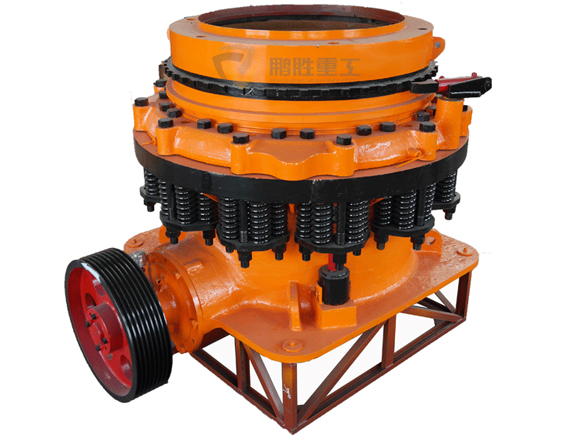

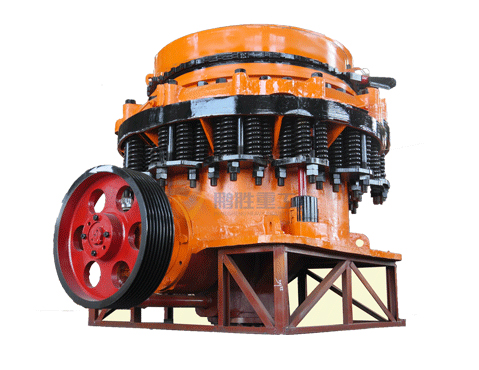

Cone Crushers are widely used in the mining, metallurgy, construction and silicate industry industry to crush hard ores/rocks with the hardness f≤5-16, such as iron ore, limestone, copper ore, quartz, granite, sandstone.
There are standard type cone crusher and short head type cone crusher defined by its crushing chamber, the standard type is suitable for medium crushing; short head type is for fine crushing.
high efficiency, large capacity, low production cost, easy to adjust and maintain.
Type | Dia.(mm) | Chamber Type | Discharge Opening (mm) | Max Feed Size (mm) | Processing Capacity (t/h) | Power (kw) | Weight (W/O Motor) (T) | Dimensions （L×W×H） (mm) |
S75B | 900 | Standard Type | 13-38 | 175 | 60-160 | 75 | 11.2 | 2656×1636×2241 |
S75D | 900 | Short-headed Type | 3-16 | 60 | 30-100 | 75 | 11.3 | 2656×1636×2241 |
S160B | 1300 | Standard Type | 16-31 | 210 | 130-250 | 160 | 22.3 | 2983×1866×3156 |
S160D | 1300 | Short-headed Type | 6-16 | 89 | 80-160 | 160 | 22.7 | 2983×1866×3156 |
S240B | 1600 | Standard Type | 22-51 | 241 | 260-420 | 250 | 43.3 | 3641×2954×3771 |
S240D | 1600 | Short-headed Type | 6-19 | 89 | 140-280 | 250 | 43.8 | 3641×2954×3771 |
S400B | 2100 | Standard Type | 25-51 | 334 | 610-1000 | 400 | 79.5 | 4631×3302×4638 |
S400D | 2100 | Short-headed Type | 10-19 | 133 | 350-510 | 400 | 80.3 | 4631×3302×4638 |
Note:
1. The process capacity is affected by many factors: physical characters of the feeding materials, shape or size of materials and feeding method, etc.
2. The above parameters are on the basis of the rock with the compressive strength about 80-100MPa.
3. Any change of technical data shall not be advised additionally.
