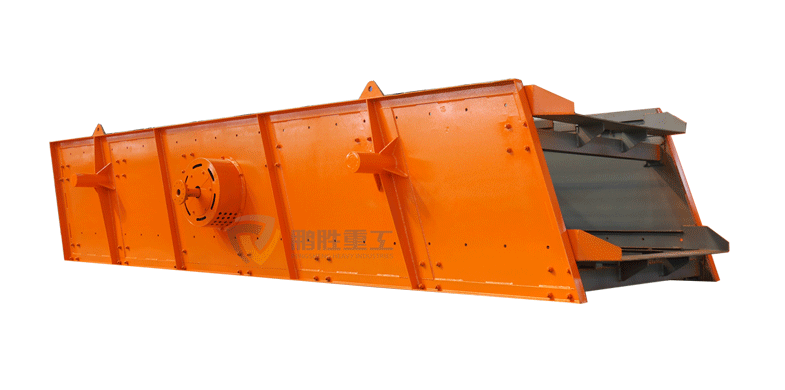

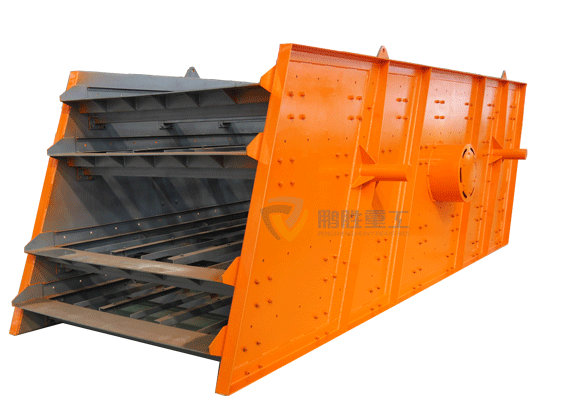

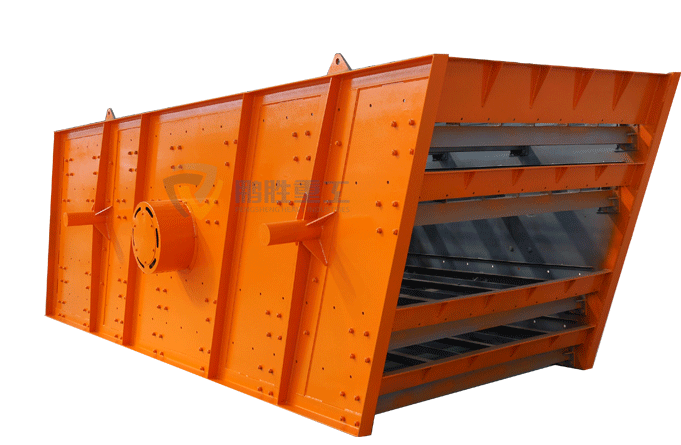

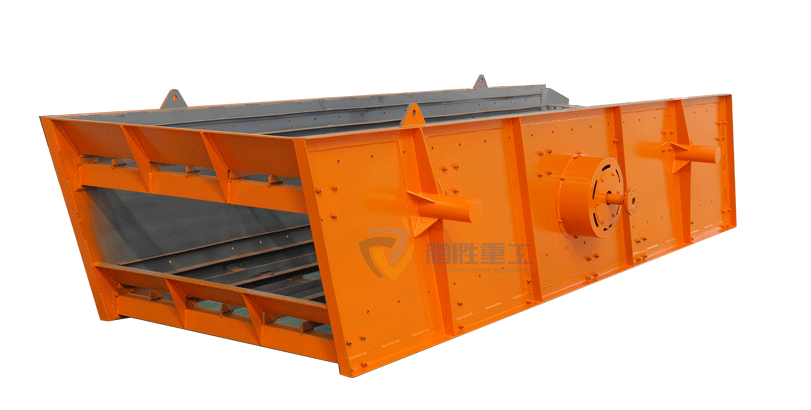

Vibrating Screen is a new, efficient, multi-decks sieving equipment. It is widely used for grading and screening materials in the following fields: mining, quarry, construction building materials, minerals, water conservancy and hydropower, chemical industry, smelting and so on.
Vibrating screen moves in circular motion, it equipped with tube-shaped vibrator, eccentric shaft and eccentric blocks, it has long slide distance, more decks for more screening sizes. It is specially designed for stone crushing plan, especially suit for mining, quarrying industries.
Adjustable vibration amplitude, strong vibration force, high efficiency throughput.
More screen decks, more screening specifications, long slide distance, and clear classification.
Low vibrating noises, convenient maintenance and operation.
Type | Screen Size (mm) | Layer | Max Feed Size (mm) | Process Capacity (t/h) | Vibrating frequency (Hz) | Double Amplitude (mm) | Power (kw) | Weight (W/O Motor) (T) | Dimensions (L×W×H) (mm) |
YK1545 | 1500×4500 | 1 | 200 | 22-180 | 970 | 7-9 | 7.5 | 3.2 | 4992×1968×912 |
2YK1545 | 1500×4500 | 2 | 200 | 22-180 | 970 | 8-10 | 11 | 3 | 5110×2216×1327 |
3YK1545 | 1500×4500 | 3 | 200 | 22-180 | 970 | 8-10 | 15 | 3.5 | 5320×2216×1745 |
4YK1545 | 1500×4500 | 4 | 200 | 22-180 | 970 | 8-10 | 15 | 4.8 | 5455×2216×2165 |
YK1854 | 1800×5400 | 1 | 250 | 32-260 | 970 | 8-10 | 15 | 3 | 5767×2438×1012 |
2YK1854 | 1800×5400 | 2 | 250 | 32-260 | 970 | 8-10 | 15 | 4.5 | 6183×2578×1425 |
3YK1854 | 1800×5400 | 3 | 250 | 32-260 | 970 | 8-10 | 22 | 6.2 | 6305×2578×1795 |
4YK1854 | 1800×5400 | 4 | 250 | 32-260 | 970 | 8-10 | 22 | 7.4 | 6450×2578×2245 |
YK1860 | 1800×6000 | 1 | 250 | 40-300 | 970 | 8-10 | 15 | 3.4 | 6228×2438×1170 |
2YK1860 | 1800×6000 | 2 | 250 | 40-300 | 970 | 8-10 | 15 | 5.1 | 6783×2578×1425 |
3YK1860 | 1800×6000 | 3 | 250 | 40-300 | 970 | 8-10 | 22 | 7.7 | 6904×2578×1795 |
4YK1860 | 1800×6000 | 4 | 250 | 40-300 | 970 | 8-10 | 22 | 9.4 | 7050×2578×2245 |
YK2160 | 2100×6000 | 1 | 300 | 70-400 | 970 | 8-10 | 15 | 5.5 | 6228×2824×1170 |
2YK2160 | 2100×6000 | 2 | 300 | 70-400 | 970 | 8-10 | 22 | 6.6 | 6475×2824×1465 |
3YK2160 | 2100×6000 | 3 | 300 | 70-400 | 970 | 8-10 | 37 | 8.8 | 6891×2880×1945 |
4YK2160 | 2100×6000 | 4 | 300 | 70-400 | 970 | 8-12 | 45 | 11 | 7083×2956×2315 |
YK2460 | 2400×6000 | 1 | 350 | 120-500 | 730 | 8-12 | 22 | 5.9 | 6468×3132×1180 |
2YK2460 | 2400×6000 | 2 | 350 | 120-500 | 730 | 8-12 | 30 | 8.6 | 6753×3300×1448 |
3YK2460 | 2400×6000 | 3 | 350 | 120-500 | 740 | 8-12 | 37 | 10.5 | 6932×3300×1946 |
4YK2460 | 2400×6000 | 4 | 350 | 120-500 | 740 | 8-12 | 45 | 12.2 | 7117×3300×2448 |
2YK2470 | 2400×7000 | 2 | 350 | 135-600 | 730 | 8-12 | 37 | 9.4 | 7773×3300×1446 |
3YK2470 | 2400×7000 | 3 | 350 | 135-600 | 740 | 8-12 | 45 | 12.5 | 7958×3300×1950 |
Note:
1. The process capacity is affected by many factors: physical characters of the feeding materials, shape or size of materials and feeding method, etc.
2. The above parameters are on the basis of the rock with the compressive strength about 80-100MPa.
3. Any change of technical data shall not be advised additionally.
