Type: Feeding Equipment
Input Size: 0-1200 mm
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc..
Applications:
Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.

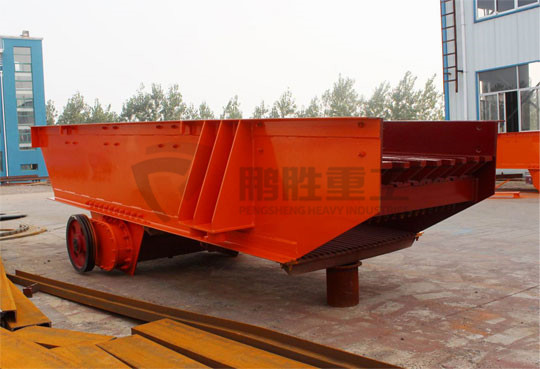

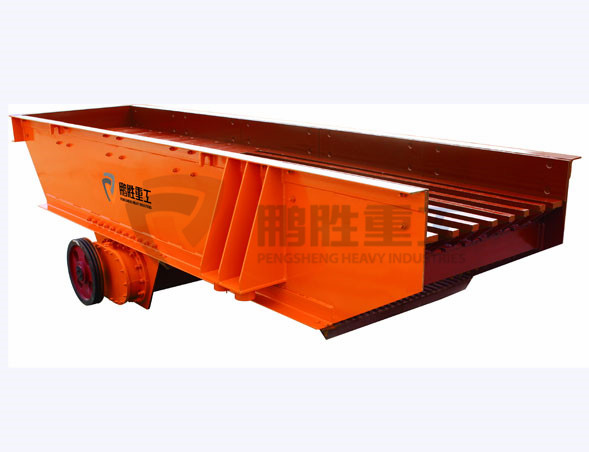

Vibrating feeder is a kind of feeding equipment. It can feed rock crusher materials evenly and continuously as well as screen the materials roughly.

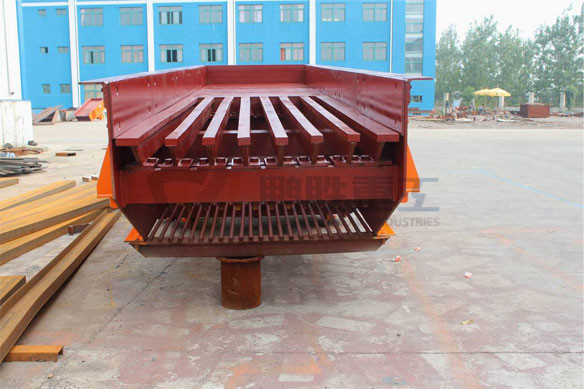

This two-deck-feeder is a new invented product used to feed and screen materials; it can screen and send the small ores to the secondary crusher directly, so as to improve the efficiency of primary crushing capacity
Feeding and screening at the same time.
Vibrating smoothly without stone splashing.
Convenient installation, operation and maintenance.
Type | Feed Chute Size(mm) | Max Feed Size(mm) | Process Capacity (t/h) | Rotor Speed (r/min) | Motor Type | Power (kw) | Weight (W/O Motor) (T) | Dimensions （L×W×H） (mm) |
ZSW380×96S | 3800×960 | 500 | 120-265 | 730 | Y180L-8 | 11 | 4.2 | 3880×1588×1315 |
ZSW490×110S | 4900×1100 | 630 | 185-440 | 710 | Y180L-6 | 15 | 5.2 | 4980×1805×1311 |
ZSW500×130S | 5000×1300 | 850 | 285-540 | 680 | Y200L2-6 | 22 | 6.8 | 5080×1941×1340 |
ZSW600×130S | 6000×1300 | 850 | 400-800 | 710 | Y225m-6 | 30 | 8 | 6080×1941×1340 |
Note: 1. The process capacity is affected by many factors: physical characters of the feeding materials, shape or size of materials and feeding method, etc.
2. The above parameters are on the basis of the rock with the compressive strength about 80-100MPa.
3. Any change of technical data shall not be advised additionally.
SBM quarry equipments includes primary crushing machines such as PE series jaw crusher, secondary crushing machines such as impact crusher, fine crushing equipments such as cone crushers and sand making machines such as vsi crusher. Our machines contain not only these stationary crushers . But also portable crushing station. For example crawler type mobile crusher and portable crushing plant.
