Type: Primary Mobile Crusher
Input Size: 0-1000mm
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc..
Applications:
Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
The mobile jaw crushers are used for soft to hard natural stone as a feeding and primary crusher.
Portable type of mobile crusher is developed according to novel series of stone crushing equipment's design idea, which expands the concept field of coarse crushing and fine crushing. Its design idea is based on the client' s requirements, which clears faults of the crushing place, surroundings and the complex basic configurations. This series of mobile crusher really supplies simpler, higher efficient and lower cost machines for clients.

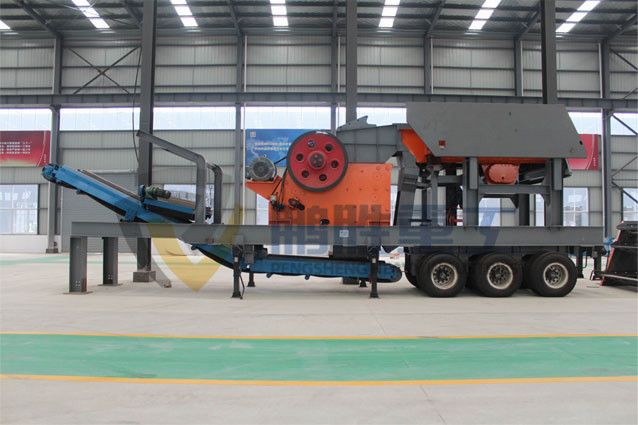

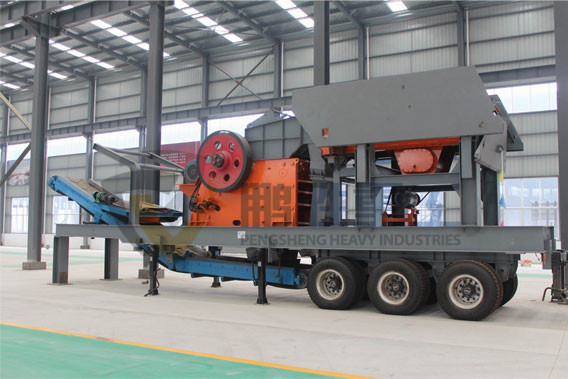

High performance jaw crusher, feeder, belt conveyor are all in one chassis.
Turn axle of traction is convenient for road transit and expanding the working place.
Vehicle installation supporting is easier for equipment to station in the working place.
Vehicle electric generating set, motors and control box are all included.
Applications and Advantages of Portable Crushing Plant:
Integrative equipment group
Flexibility
Lower freight cost
Direct and efficient operation
Easy to adapt and flexible to collocate
Reliable performance and convenient maintenance
Model Number | Main Machine | Items | Unit | Parameter |
YLG380X96S-C100 | Complete Machinery | Dimension(L×W×H) | mm | 14800×3850×6900 |
Height of Feeding | mm | 4750 | ||
C100 Jaw Crusher | Max Feeding Size | mm | 500 | |
Capacity | T/h | 150－200 | ||
Power | Kw | 110 | ||
Weight | T | 21.5 | ||
ZSW380×96S Feeder | Max Feeding Size | mm | 500 | |
Capacity | T/h | 100－120 | ||
Power | Kw | 11 | ||
Weight | T | 4.5 | ||
B1000×9 Conveyor Belt | Discharge Height | mm | 2700 | |
Power | Kw | 11 | ||
B500×3.5 Conveyor Belt | Discharge Height | mm | 2700 | |
Power | Kw | 3 | ||
Running Parameter | Dimension for Shipping(L×W×H) | mm | 14050×3200×4350 | |
Max Speed | Km/h | 40 | ||
Maximum Gradeability | ° | 21 | ||
Minimum Ground Clearance | mm | 300 | ||
Press of Pneumatic | KPa | 650-750 | ||
Tyre Specs | mm | 10.00R20 | ||
King Pin Specs | mm | 90 | ||
YLG380X96S-C80 | Complete Machinery | Dimension(L×W×H) | mm | 14800×3850×6900 |
Height of Feeding | mm | 4750 | ||
C80 Jaw Crusher | Max Feeding Size | mm | 500 | |
Capacity | T/h | 80-100 | ||
Power | Kw | 75 | ||
Weight | T | 9 | ||
ZSW380×96S Feeder | Max Feeding Size | mm | 500 | |
Capacity | T/h | 100－120 | ||
Power | Kw | 11 | ||
Weight | T | 4.5 | ||
B1000×9 Conveyor Belt | Discharge Height | mm | 2700 | |
Power | Kw | 11 | ||
B500×3.5 Conveyor Belt | Discharge Height | mm | 2700 | |
Power | Kw | 3 | ||
Running Parameter | Dimension for Shipping(L×W×H) | mm | 14050×3200×4350 | |
Max Speed | Km/h | 40 | ||
Maximum Gradeability | ° | 21 | ||
Minimum Ground Clearance | mm | 300 | ||
Press of Pneumatic | KPa | 650-750 | ||
Tyre Specs | mm | 10.00R20 | ||
King Pin Specs | mm | 90 |
