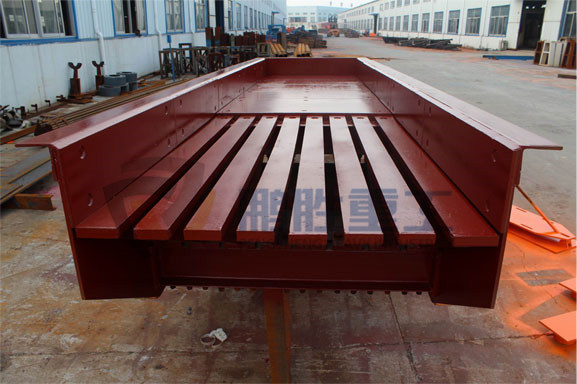

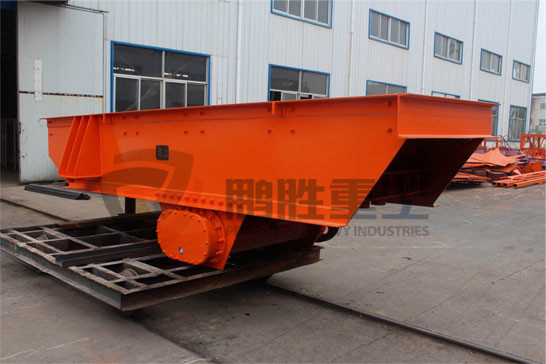

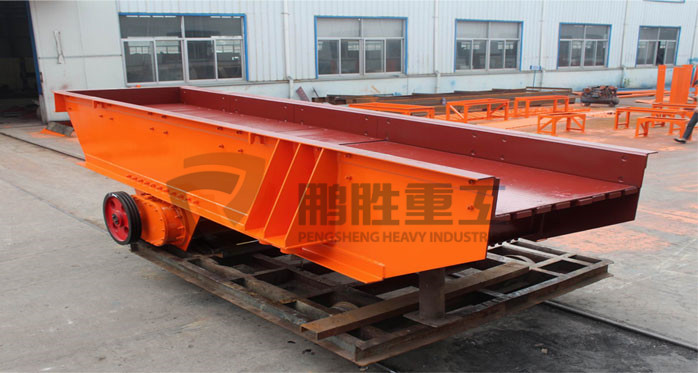

Vibrating feeder is a kind of feeding equipment. It can feed rock crusher materials evenly and continuously as well as screen the materials roughly. Vibrating feeders are widely used to in the industry of mining, metallurgy, coal mining, construction materials and chemistry etc.
Working principle:
The motor drive the two vibrators to make the feeder vibrate. Through the vibration, the materials will move to the grating and slide to the crusher, the powder and the small rocks will fall off the grating and go to secondary crusher directly.
Simple structure for reliable quality and long life.
Vibrating smoothly without stone splashing.
Convenient installation, operation and maintenance.
Type | Feed Chute Size(mm) | Max Feed Size(mm) | Process Capacity(t/h) | Rotor Speed (r/min) | Motor Type | Power (kw) | Weight (W/O Motor) (T) | Dimensions (L×W×H) (mm) |
GZD250×75 | 2500×750 | 300 | 65-135 |
| YZD25-6-I | 1.5×2 | 1.4 | 2539×1160×999 |
ZSW380×96 | 3800×960 | 500 | 120-265 | 730 | Y180L-8 | 11 | 4 | 3880×1588×1315 |
ZSW490×110 | 4900×1100 | 630 | 185-440 | 710 | Y180L-6 | 15 | 5 | 4980×1805×1311 |
ZSW500×130 | 5000×1300 | 850 | 285-540 | 680 | Y200L2-6 | 22 | 6.6 | 5080×1941×1340 |
ZSW600×130 | 6000×1300 | 850 | 400-800 | 710 | Y225M-6 | 30 | 7.8 | 6080×1941×1340 |
ZSW600×160 | 6000×1600 | 1200 | 450-850 | 710 | Y250M-6 | 37 | 9.5 | 6090×2110×1580 |
Note: 1. The process capacity is affected by many factors: physical characters of the feeding materials, shape or size of materials and feeding method, etc.
2. The above parameters are on the basis of the rock with the compressive strength about 80-100MPa.
3. Any change of technical data shall not be advised additionally.
